YAYIDA Dental File Extractor Root Canal File Remover Holder Teeth Treatment Tools compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.YAYIDA summarizes the defects of past products, and continuously improves them. The specifications of YAYIDA Dental File Extractor Root Canal File Remover Holder Teeth Treatment Tools can be customized according to your needs.
Description

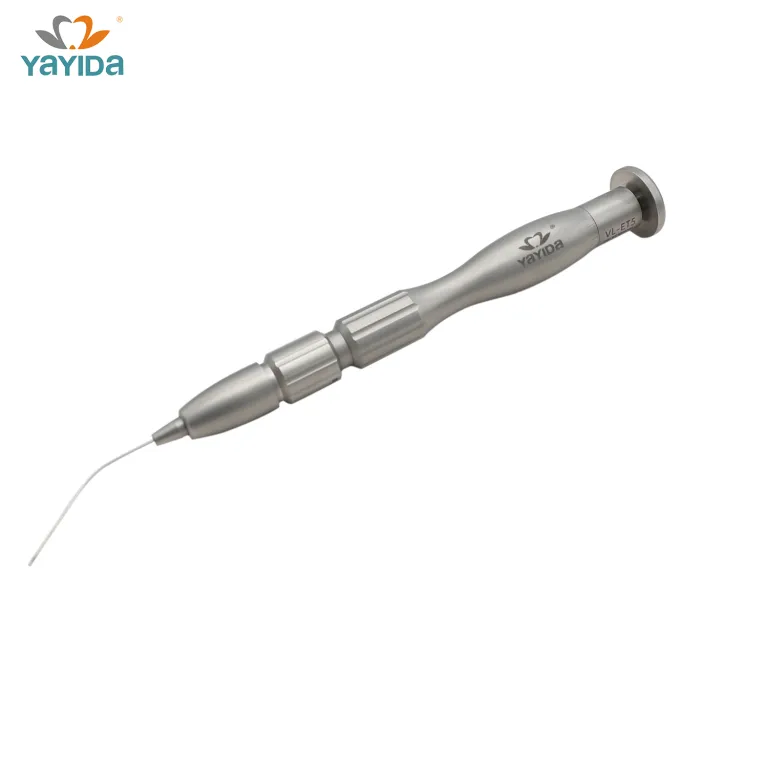

●The product is made of stainless steel and is composed o fhandle, clamping sleeve and needle core；
●The device can be used directly under the microscope, by pushing the end of the handle to push the cap to cooperate with the clamping sleeve Clamp the broken device,
remove the broken device or other foreign bodies in the root canal;
●The bending wrench can adjust the bending Angle of the clamping sleeve according to the position of the affected tooth,and the factory bending is 45 degrees.
The maximum Angle can be adjusted to 90 degrees;
●The equipment can be reused and provided non-sterile
Specification
| Needle Core Diameter | φ0.45mm | φ0.55mm | φ0.65mm |
| Clamping Sleeve ID * OD | φ0.5mm*φ0.8mm | φ0.6mm*φ0.9mm | φ0.7mm*φ1.1mm |
| Minimum Number of Bends | 10 times | 10 times | 10 times |
| Punch Drill | φ0.8mm | φ0.9mm | φ1.1mm |
| Punch Sleeve | φ0.8mm | φ0.9mm | φ1.1mm |
| Guide Drill | T6 Blue | 19mm 60.04 |
| T7 Green | 19mm 70.03 | |
| T8 Black | 19mm 80.02 | |
| T9 White | 19mm 90.02 | |
| T11 Red | 19mm 110.01 |
Introduction to Using
1. Use a G drill to remove the dentin until the tip of the drill is close to or touches the section of the file；
2. Select a guide drill of suitable size (80. 90. 110 specification) to continue to remove the dentin channel；
3. After cutting the dentin, select a suitable flat drill with low speed according to the section size of the file；
Reverse grinding file removal channel (recommended speed 160r/min)
4. Use the annular cannula to reverse at low speed and remove the dentin around the file until the file is exposed 2-3mm;
In case of a curved root canal, the annular casing cannot go deep, use a guide drill (60-70 gauge) at low speed；
The dentin around the file was removed by positive rotation until the file was exposed 2-3mm;
5. Install clamping sleeves of appropriate specifications;
6. Cover the broken file with the casing window；
7. Push the press cap forward so that the clamping sleeve clamps the broken file tightly；
8. Lock B by rotating in the direction indicated by the arrow, and press the clamping sleeve tightly (pay attention to tightening).Press the press cap firmly. Pull out the broken
