1. AR heater it is designed to heat the composite resin material to improve the flow performance when it is bonded.
2. It can also be used to heat manual equipment used for bonding.
3. AR Heater using precision circuitry to control its heating module,keep the temperature tolerance within ±1℃.
4. Depending on the material and personal choose,the temperature can be set to :40℃,50℃ and 70℃
Description
Operating
1. Insert the DC plug of the power adapter into the DC socket of the heating body.
Then plug the power adapter into an electrical outlet. At this time,
three temperature indicators are on at the same time(standby heating)
2. Place the heated body on a flat table;
3. Press the button on/off to turn on the heated body. Press the button again to turn off the heat ng bodyThe default temperature
for heating the main body is 40*C; (When the heating body is off, three temperature Indicators are on at the same time)
4. Push the button to choose which temperature you need, See the detailed temperature list below:(When the indicator light changes from blinking to steady light, indicates that the temperature has reached the preset temperature.)
| Temperature | Indicator light color | Heating | Reach preset temperature |
| 40℃ | Blue | Blue LED shining | Blue LED is always on |
| 50℃ | Green | Green LED shining | Green LED is always on |
| 70℃ | Red | Red LED shining | Red LED is always on |

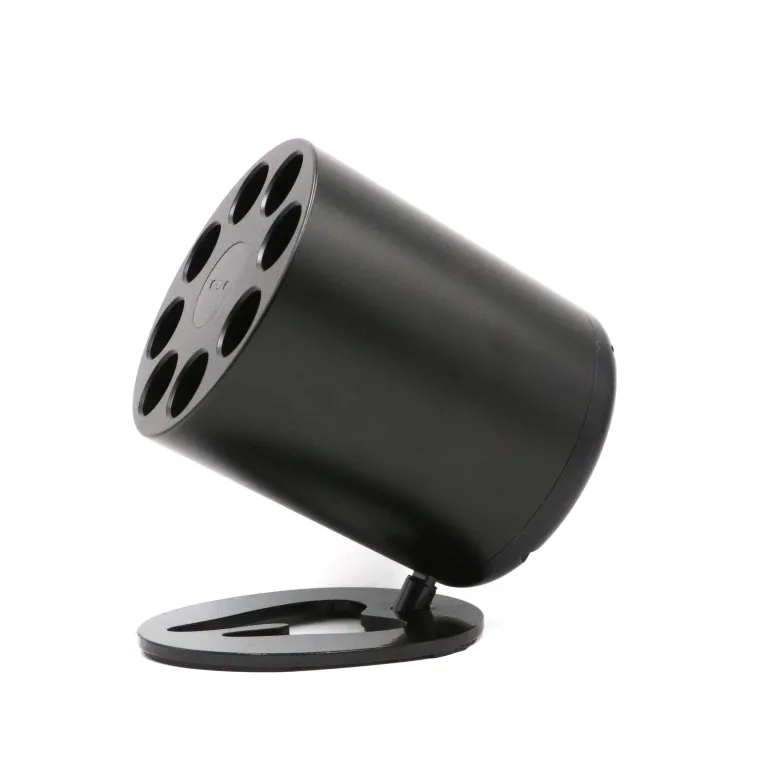

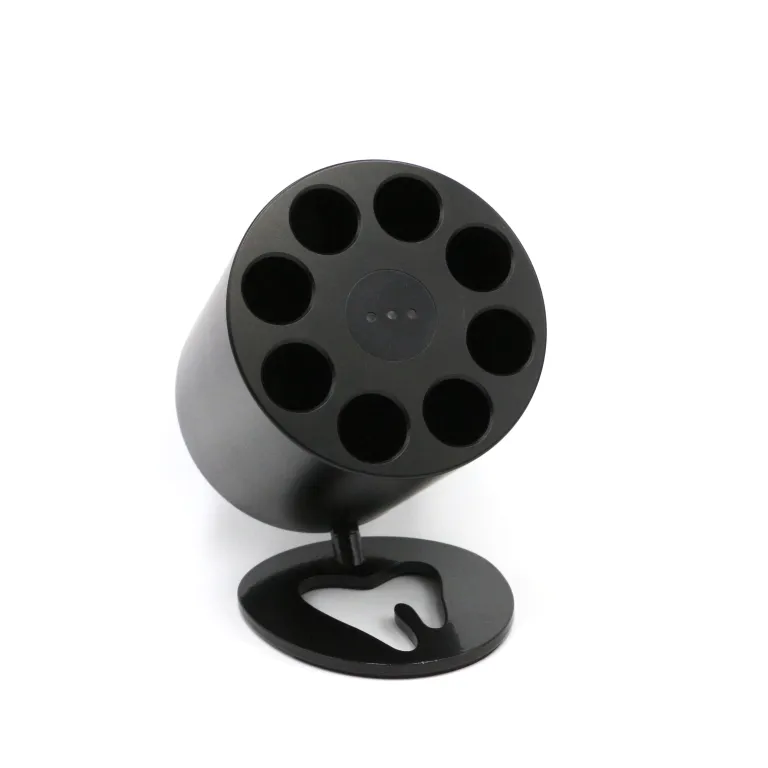

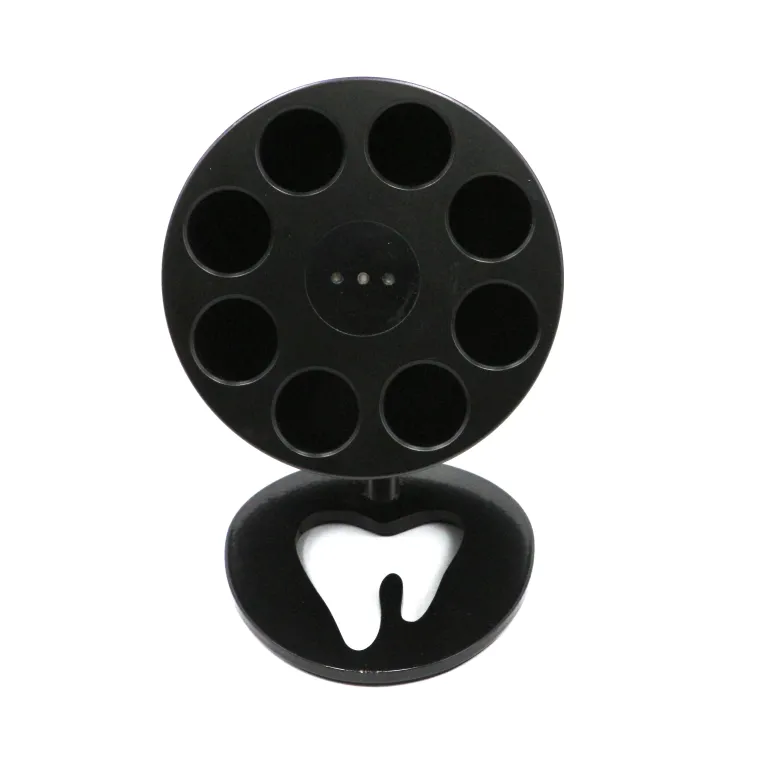

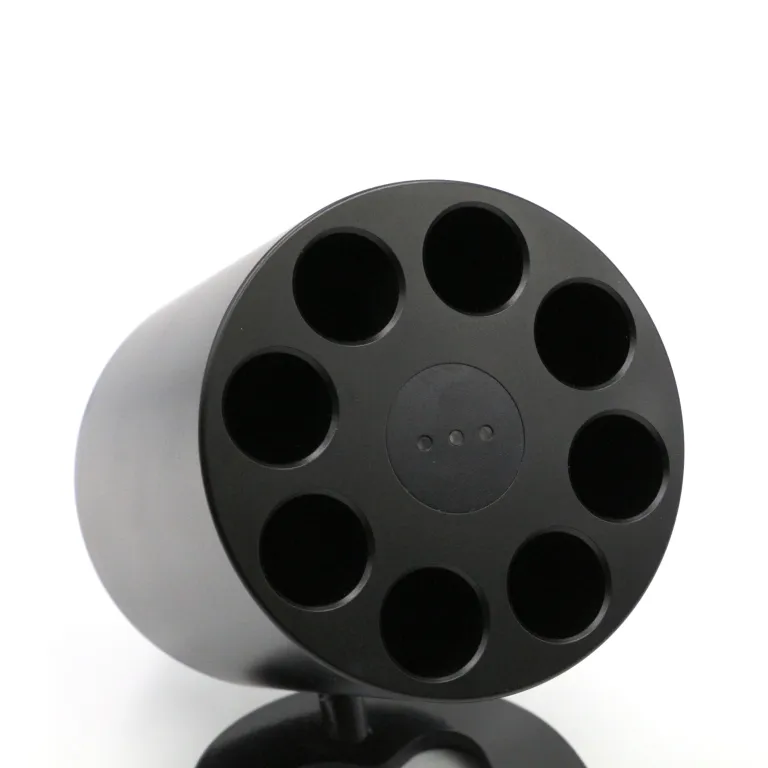

5. The resin composite to be used is inserted into the hole of the heating body together with the syringe. Or put in the manual instrument that will be used.

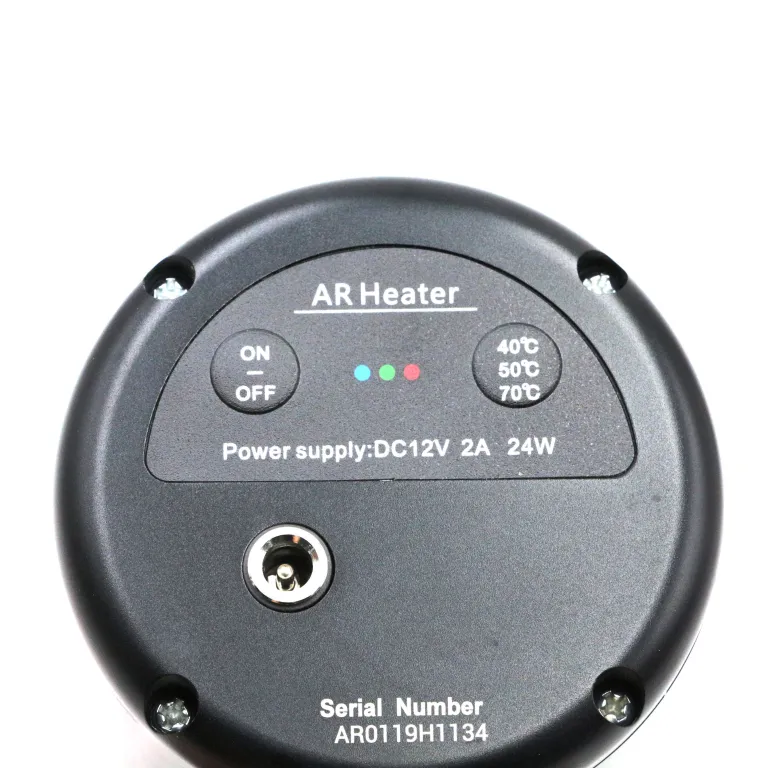

Heater composition
1- Heating body
2- Adapter
3- Temperature indicator
4- On/Off button
5- Temperature selection button
Note
The resin composite material must tighten the lid of the syringe, to prevent leakage material within the heating body.
Clean and disinfect
All the parts can be cleaned with a disinfectant dishcloth. Don’t put any parts immersed in any liquid cleaning and disinfection, don’t disinfect under high temperature and high pressure.
Fault warning
3 sets of indicator light glisten together: Temperature sensor failure.
Warranty
-All parts of this equipment are warranted for 1 year.Man·made damage is not within the free warranty. Return to your dealer or manufacturer for a repair if have any problem.
-Do not ds assemble the equ lp ment to r maintenance.f you dismantle and repair yourself, you will no longer be free during the warranty period.
