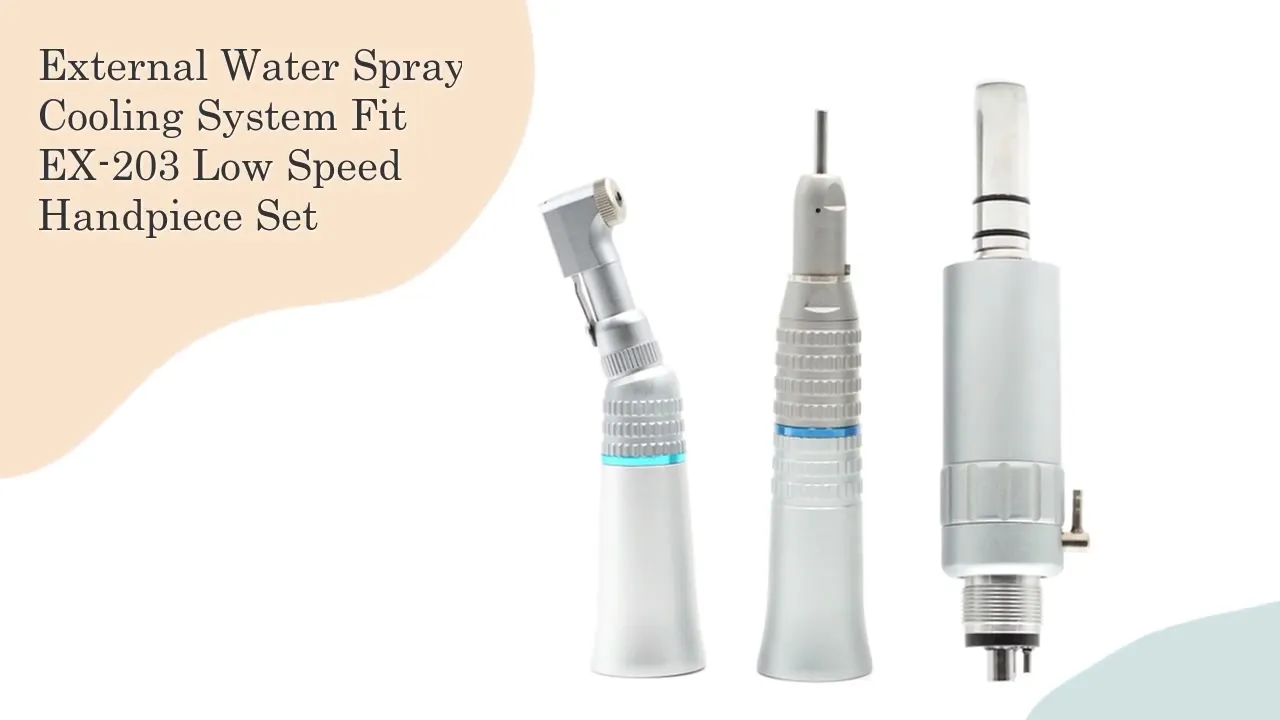

YAYIDA Dental External Water Spray Fit EX-203 Low Speed Handpiece Set With Contra Angle, Straight and Air Motor

1. Universal E-type handpiece system Innovative, ergonomic,easy-to-use push-latch chuck design.2. 360°adjustable head design Durable stainless steel backend.3. Head for contra-angle is thoroug...

1. Universal E-type handpiece system Innovative, ergonomic,easy-to-use push-latch chuck design.
2. 360°adjustable head design Durable stainless steel backend.
3. Head for contra-angle is thoroughly interchangeable.
4. Smooth start-up with powerful torque Durable with very low vibration.
5. Delivery Time: Usually 2–5 days Fast Delivery by DHL, FedEx.
6. 1-year warranty.

Parameter

Hole2/4 hole for chooseBearingCeramic bearing
SprayExternal water sprayChuck typeLatch type
Forward rotation18,500-20,000rpmReverse Rotation18,000-19,000rpm
Gear Ratio1:1Bur Type2.35mm
Spray water pressure3.0 bar (300kpa)Spray air pressure3.0 bar (300kpa)
Recommended drive pressure3.0 bar( 0.3MPa)Air consumption≤80L/min (at 0.3MPa)
Amount of spray air1.5Nl/min (at 2.5 bar)Cooling airflow5 to 40Nl/min (at 3.0 bar)
Noise≤68dB

Describe:

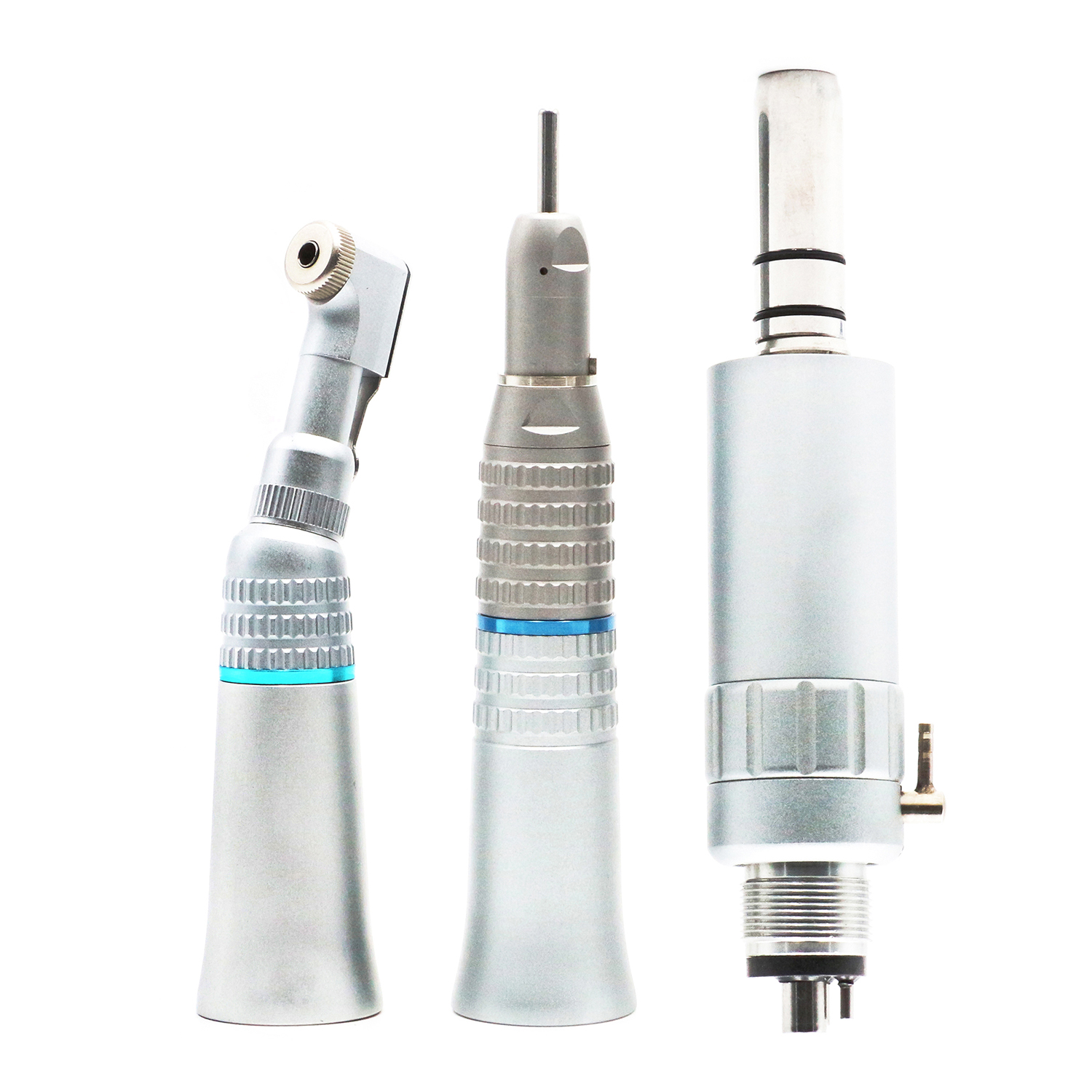

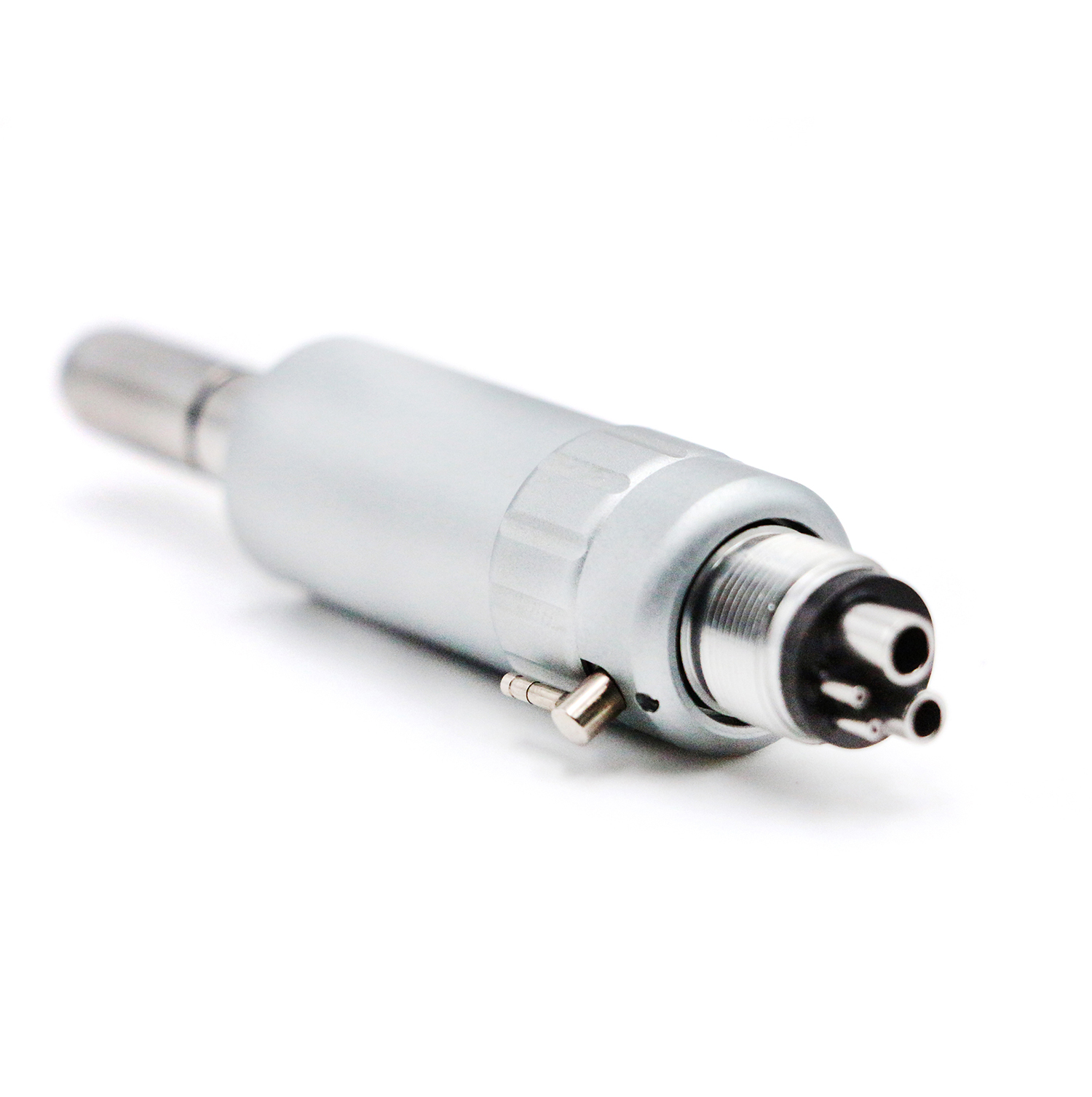

1. One set include:1:1 Contra angle with latch-type head,1:1 Straight handpiece, and 2 or 4 hole air motor.
2. Handpiece dust-proof design -straight handpiece front end with dust cover, to prevent dust impurities into the handpiece.
3. Needle clip firmly Fine aluminum alloy lock structure.
4. Using super-elastic steel clip structure, needle clip firmly, the needle is not easy to eject.
5. Flexible control of forward and reverse, Lightweight, the operation is more comfortable.
