1. Quattro cooling atomization, water and gas separation
2. Hygienic head, anti-retraction system
3. Using ceramic bearings, resistant to high-temperature disinfection at 134 degrees
4. Frosting pattern, non-slip design
Description

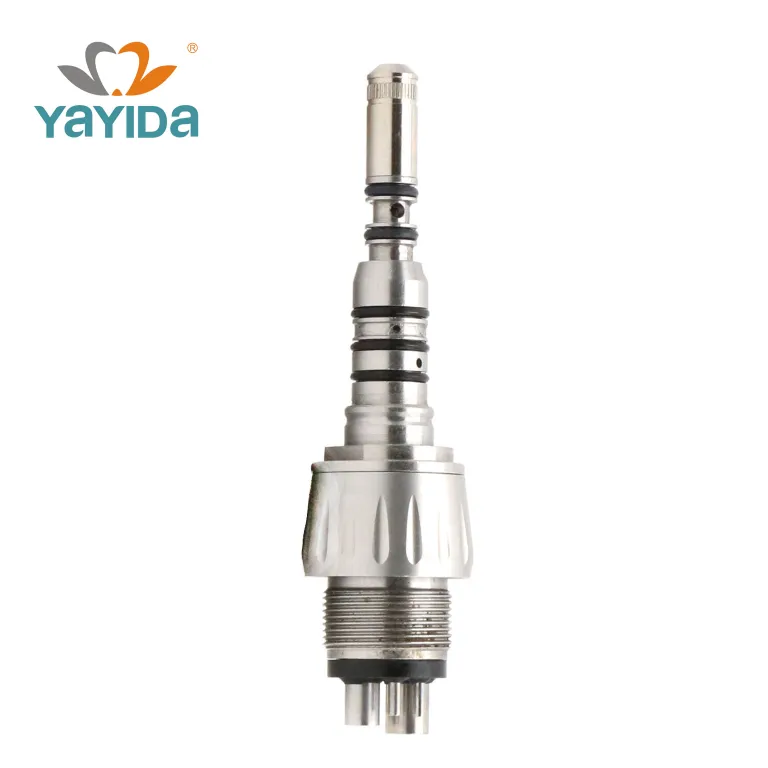

- 1. With Multiflex Quick Connector
2. Open type cartridge, good stability, and shock absorption effect
3. Imported high-quality optical fiber with high permeability and good stability
Parameter
| Rotation speed | 330000-420000r/min | Drive air pressure | 200-300kpa(2.0-3.0bar) |
| Drive air pressure recommended | 250kpa(2.5bar) | Return air pressure | <0.5 bar (50kpa) |
| Spray water pressure | 220-300kpa(2.2-3.0 bar) | Spray air pressure | 220-300kpa(2.2-3.0bar) |
| Air consumption | ＜80Nl/min | Amount of spray air | 1.5Nl/min (at 2.0 bar) |
| Cooling airflow | 5 to 40Nl/min (at 3.0 bar) | Bur applicable | Φ1.59mm~Φ1.60mm |
| Noise | ≤68dB | Light intensity | ≥7,000 LUX |
| Disinfection | autoclavable to 135 ℃ | Available connection | For multiplex coupling |
| OEM Service | Accepted | Customized Service | Accepted |
