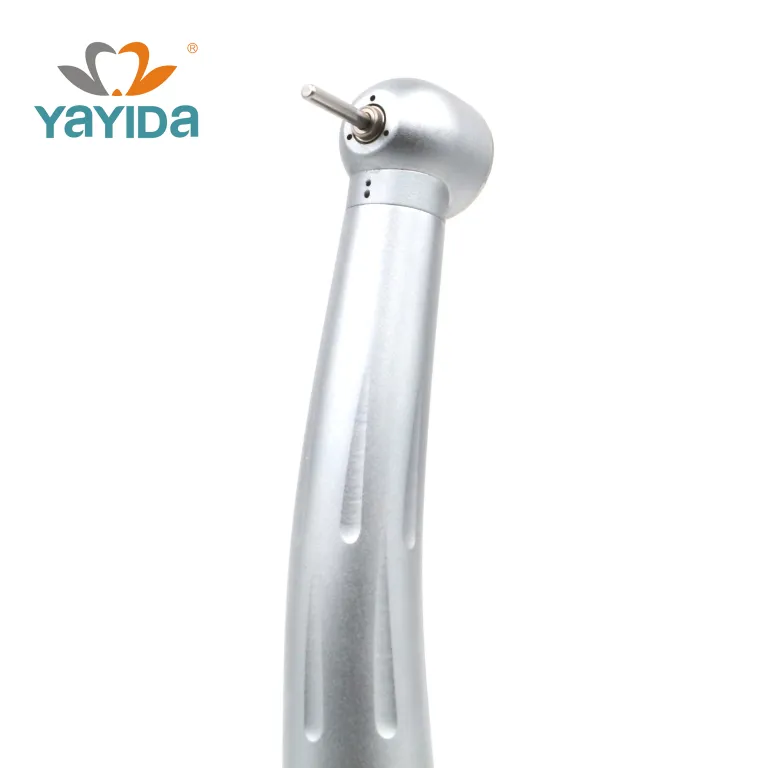

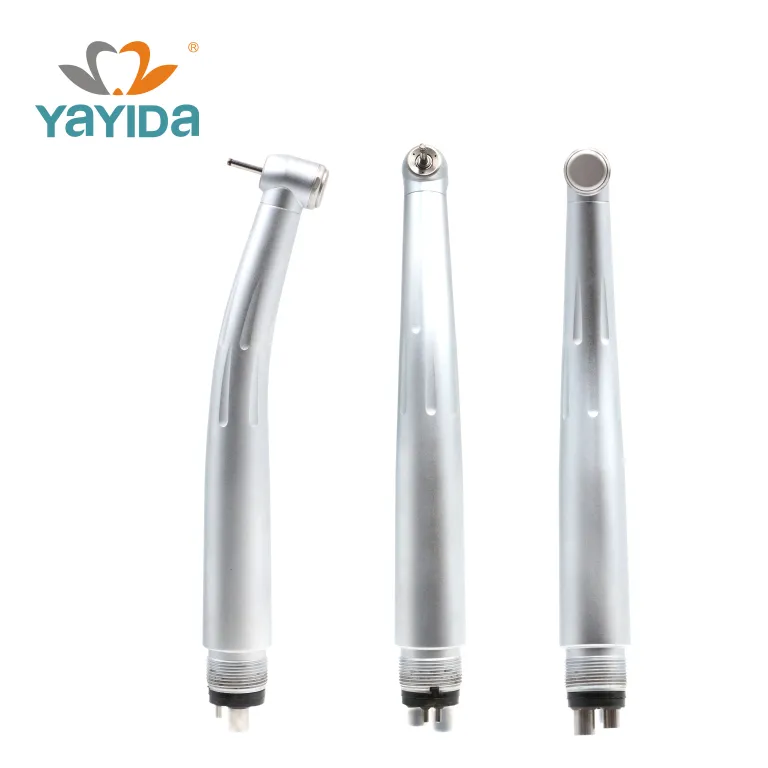

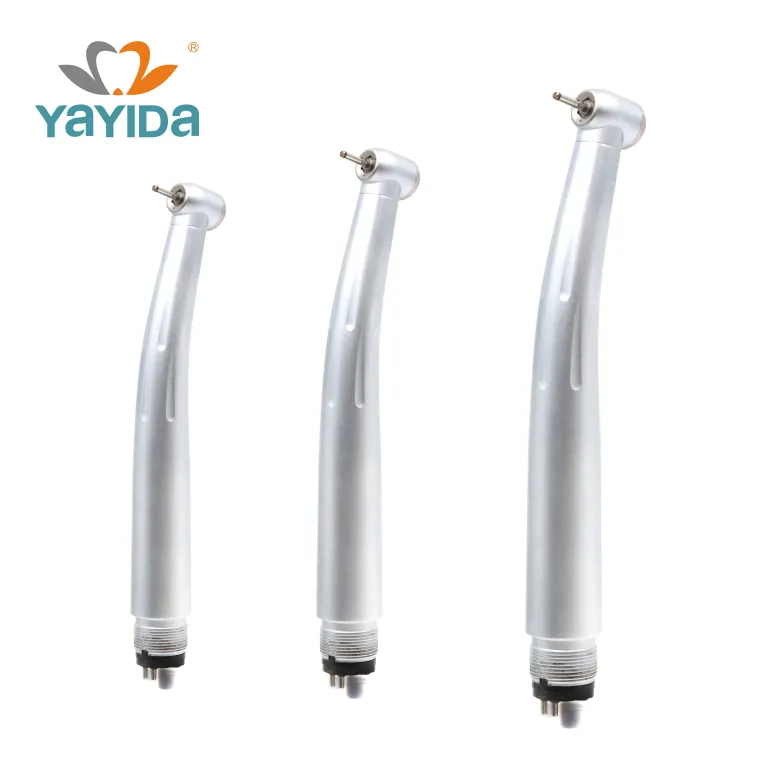

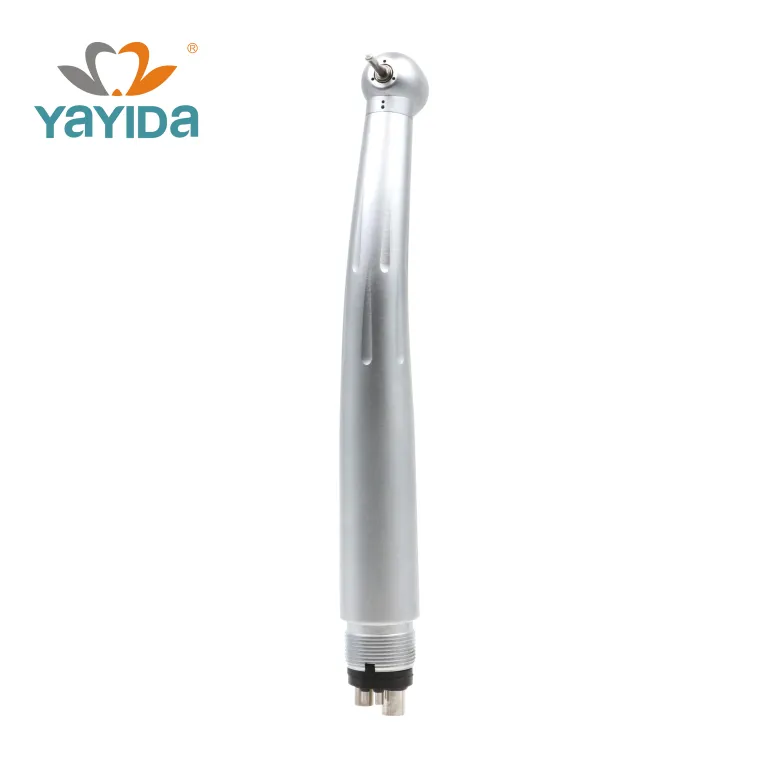

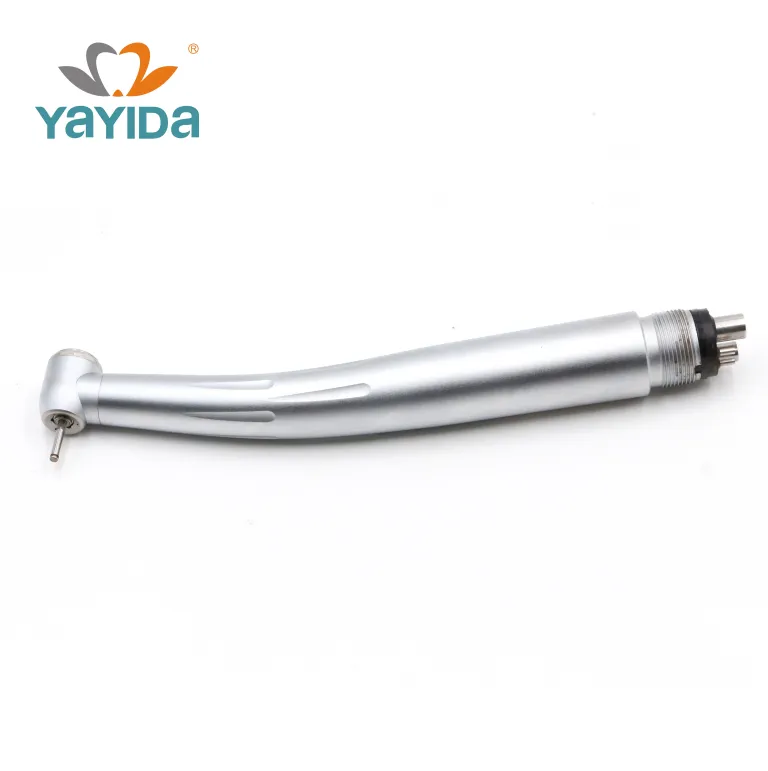

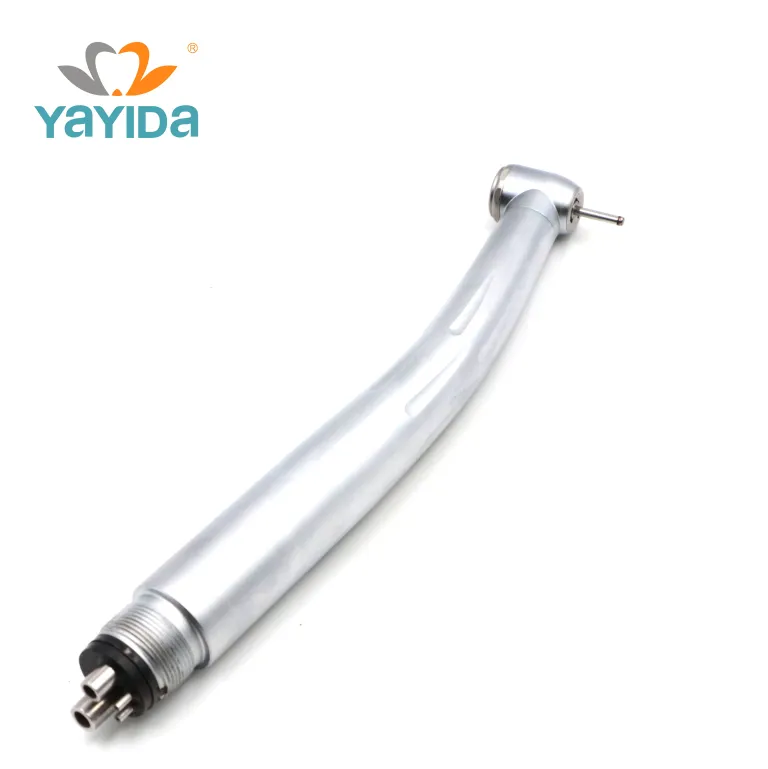

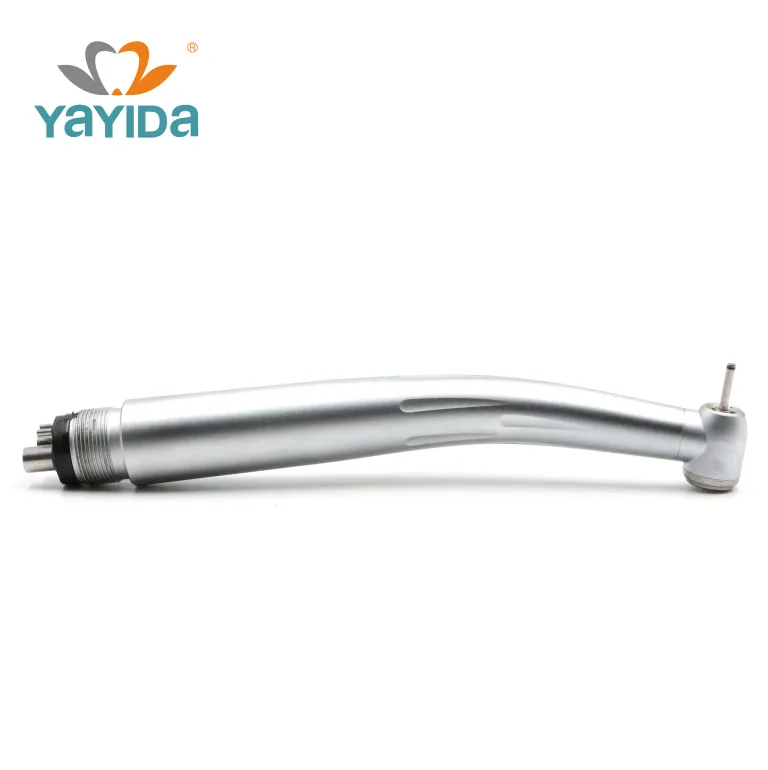

1. Anti-infection high-speed dental handpiece
2. Wide operating field of view
3. High cutting efficiency
4. Anti-slip patten

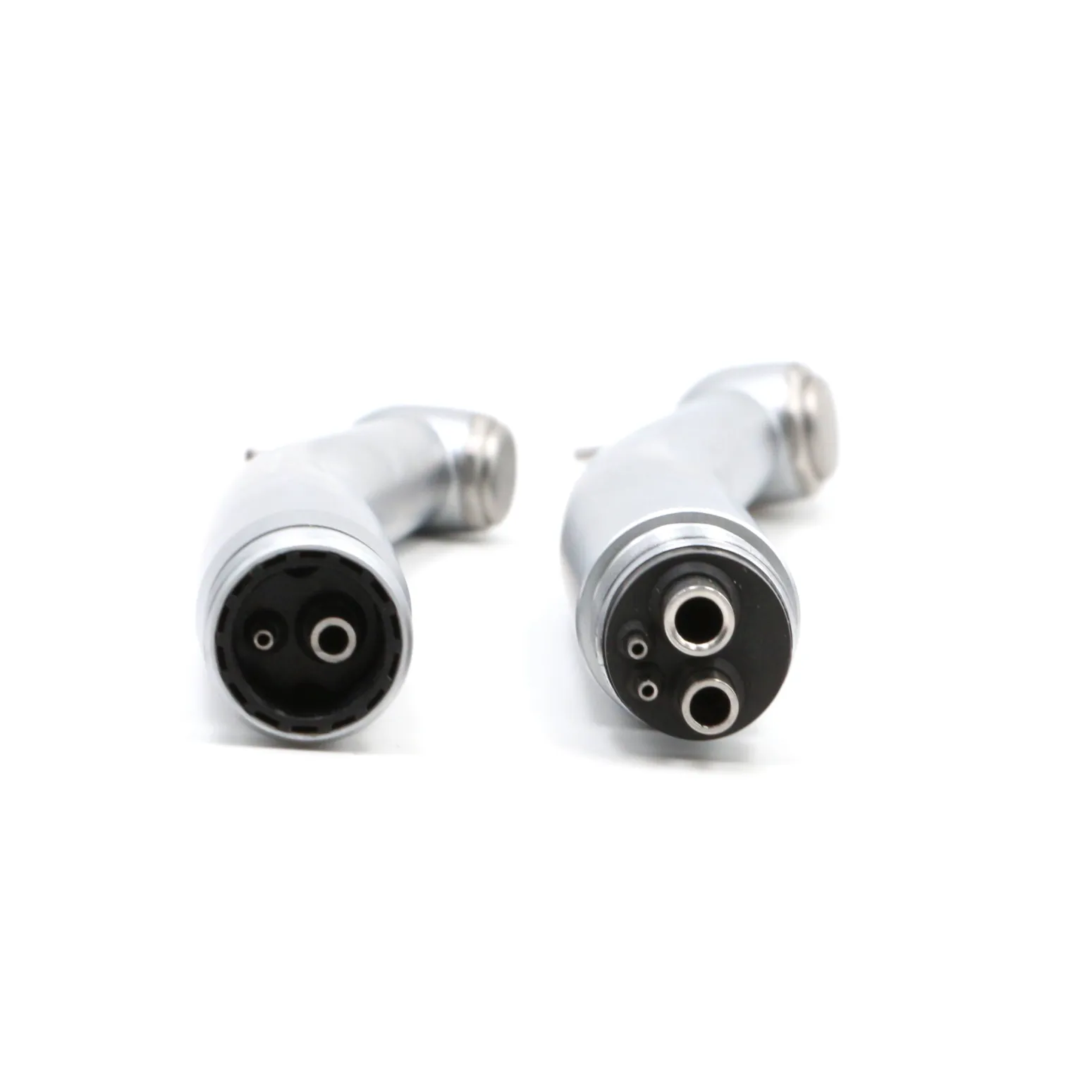

5. International Standard interface
6.Head cap thread come with high temperature resistance o-ring,it’s good for avoid the dirty,better extend of service life.
Description
1. 3 water spray design can effectively cool the heat emitted by cutting and grinding teeth, improve work efficiency, and reduce the chance of water nozzle clogging.
2. Stainless steel push back cover, moderate snap back elasticity, good hand feeling
3. Adopting the anti-retraction design, the pressure change during the operation process causes the impurity and sewage from the operation to flow back to the dental handpiece and cause cross-infection.
4. 134 degrees high temperature and high-pressure disinfection, in line with national standards, will not be deformed due to high temperature.
Parameter
| Rotation speed | 330000-420000r/min | Drive air pressure | 200-300kpa(2.0-3.0bar) |
| Drive air pressure recommended | 250kpa(2.5bar) | Return air pressure | <0.5 bar (50kpa) |
| Spray water pressure | 220-300kpa(2.2-3.0 bar) | Spray air pressure | 220-300kpa(2.2-3.0bar) |
| Air consumption | ＜80Nl/min | Amount of spray air | 1.5Nl/min (at 2.0 bar) |
| Cooling airflow | 5 to 40Nl/min (at 3.0 bar) | Bur applicable | Φ1.59mm~Φ1.60mm |
| Noise | ≤68dB | Disinfection | autoclavable to 134 ℃ |
| OEM Service | Accepted | Customized Service | Accepted |
