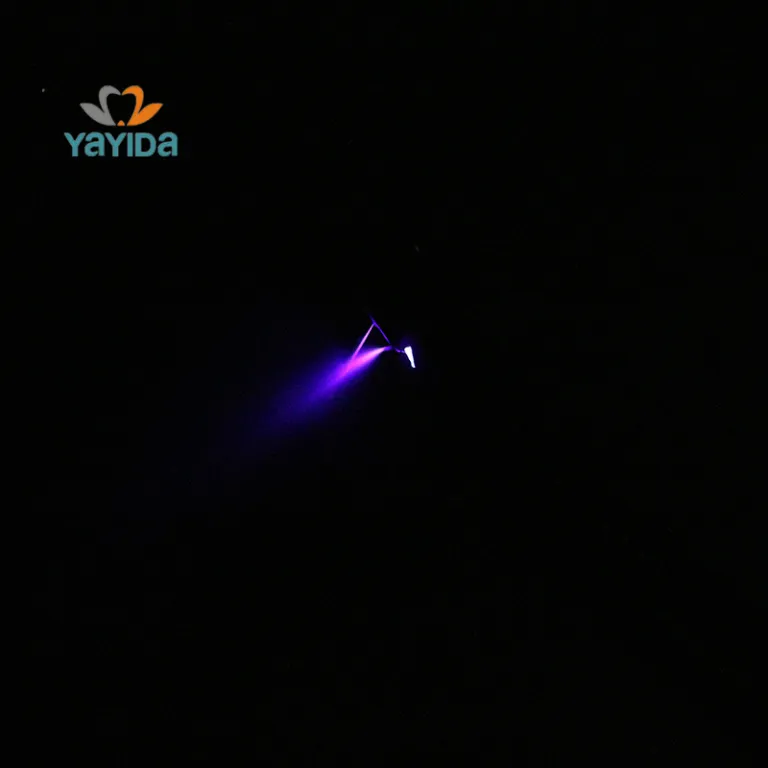

- High speed, with LED lights
- Low noise
- Caries detection,handpiece with generator
- Push-button type design, easy to load and unload, save time
- Ergonomic design, creating a beautiful apperance with non-slip design
Description
1.The open type cartridge can effectively reduce the failure rate of dental handpiece caused by improper cleaning or maintenance. At the same time, the open type cartridge can also make maintenance and oiling more convenient
and safer to use.
2. Adopt an international standard interface, compatible with various high-end dental chairs
3. One-piece head made by the ceramic bearing. More endurable and longer service life

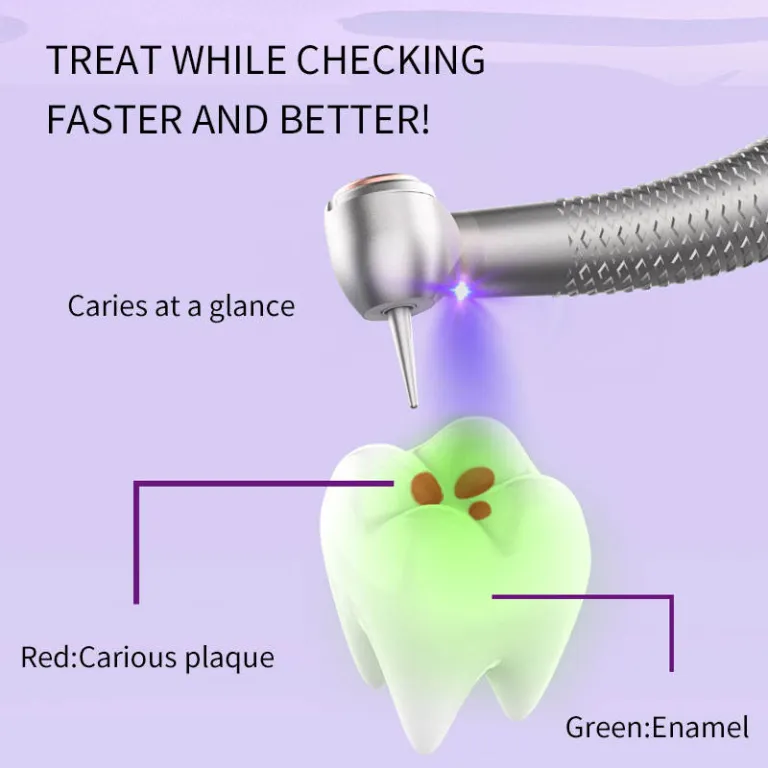

4. Caries detection at a glance, one handpiece to reach your treatment goals.
5. Detect caries and remove carious material
red: carious plaque
Green: healthy teeth
Parameter
| Type | 2 /4 hole for choose | Head | Standard, torque |
| Spray | Single water spray | Chuck type | Push button |
| Bearing | Ceramic bearing | Drive air pressure recommended | 250kpa(2.5bar) |
| Return air pressure | <0.5 bar (50kpa) | Spray water pressure | 220-300kpa(2.2-3.0 bar) |
| Spray air pressure | 220-300kpa(2.2-3.0bar) | Air consumption | ＜80Nl/min |
| Amount of spray air | 1.5Nl/min (at 2.0 bar) | Cooling air flow | 5 to 40Nl/min (at 3.0 bar) |
| Rotation speed | 330000-420000r/min | Torque | 25-45N |
| Noise | ≤68dB | Burs applicable | φ1.59mm~φ1.6mm |
| OEM available | YES | Customized | YES |
