1、Saw handpieces for cutting and separating bone substances mechanically in cranio-maxillo-facial surgery .

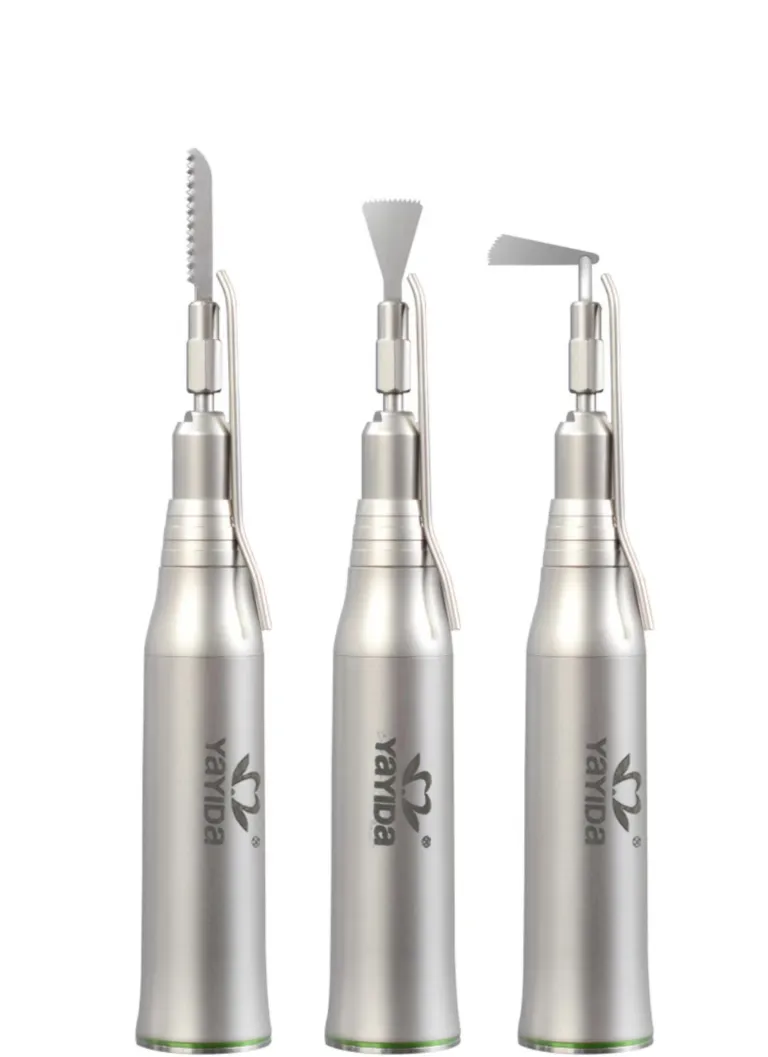

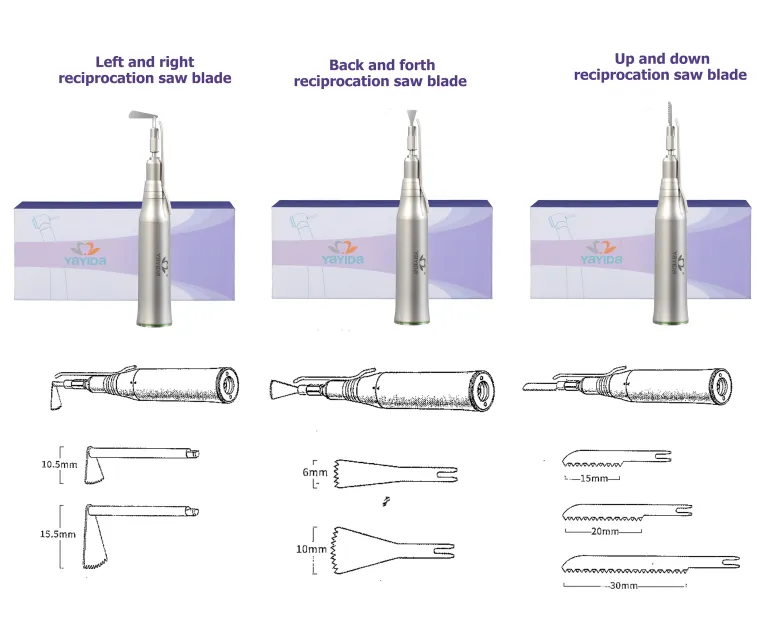

2、3 models:
1)Left and right reciprocation saw blade
2)Back and forth reciprocation saw blade
3)Up and down reciprocation saw blade
Description
1.For sagittal,oscillating or reciprocal movement
2.Low vibration and exceptionally quiet
3.Can be dismantled for thorough cleaning
4.Clean, disinfect and lubricate the medical device.
5.Sterilize the medical device,the saw blades,the coolant tube the spanner and the nozzle cleaner.
6.Standard interface, which can be equipped with multi-brand implant motors;
7. The whole machine can be disassembled and sterilized at high
8. Outstanding chip power
9. Stainless steel material , more durable
Parameter
| Transmission ratio | 3.2:1 / 4:1/ 4:1 | Motion | 1. Reciprocating Up and down reciprocation2. Sagittal Back and forth reciprocating3. OscillatingLeft and right reciprocation |
| Speed | Max speed 40,000rpm | ||
| Frequency | 12,300rpm/mins | Working direction | 1. Sagittal：with reciprocation motion, forward / reverse cutting direction2. Oscillating: with sagittal motion,cutting direction parallel to the axis3. Reciprocating movement，with oscillating motion,cutting direction 90° to the axis |
| Strokes or angles | 1.8mm / 3° / 17° |
